Illuminated Logo Signs: 7 Proven Design Choices for Business
Illuminated logo signs turn a company logo into a visible day-and-night brand feature. They use integrated LEDs to light the face, edge, or wall behind fabricated letters and logo shapes.

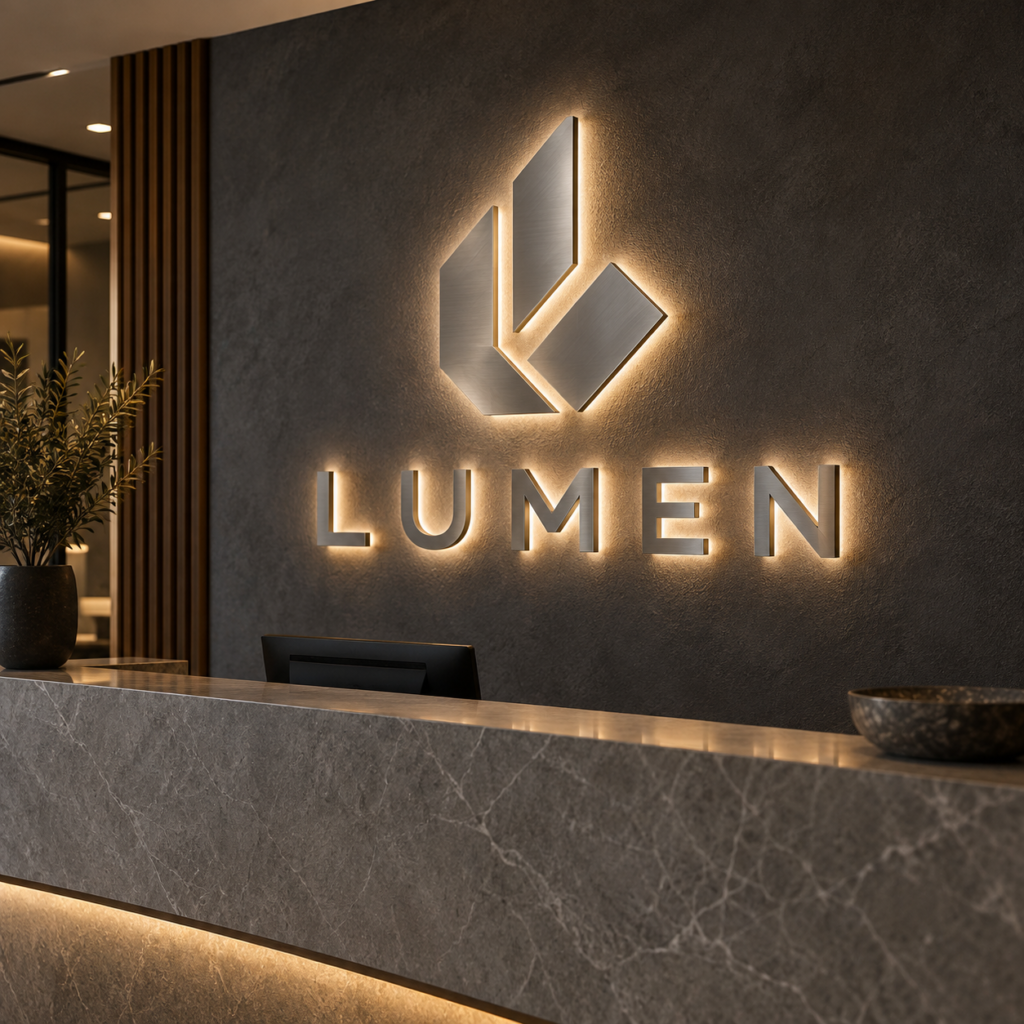

For an office reception, a warm-white halo logo can create a refined first impression without excessive brightness. For a retail store, front-lit logo letters can make the brand easier to see from the street. For a hotel, restaurant, or showroom, the right illuminated logo can connect the interior design with the brand identity.
The key is choosing a construction that matches the viewing distance, wall material, operating environment, and desired lighting effect. At HLW Sign, we manufacture custom illuminated logo signs from one set upward, including backlit metal logos, front-lit channel letters, acrylic logo signs, RGB signs, and light boxes.
1. What Are Illuminated Logo Signs?
Illuminated logo signs are custom-made signs that combine a logo, lettering, or graphic symbol with internal LED lighting. Instead of relying only on printed graphics, they add depth and controlled illumination to make the brand more noticeable.
A typical illuminated logo sign includes:
- Fabricated letters, logo shapes, or a complete logo panel
- LED modules, strips, or pixel LEDs
- A suitable low-voltage power supply
- Internal wiring and connectors
- Mounting studs, brackets, a rear panel, or a raceway
- A controller when RGB or programmed colour effects are required
The logo can be made from stainless steel, aluminium, acrylic, painted metal, or a combination of materials. The lighting may project forward through an acrylic face, sideways through acrylic edges, or backward onto the installation wall.
For commercial signage, lighting quality matters more than simply using high-output LEDs. The finished sign should look even, legible, and appropriate for the space.
2. Choose the Right Type of Illuminated Logo Sign
Different illuminated logo signs create very different visual results. The most suitable option depends on where customers see the logo and how the business wants to be perceived.
| Type of Logo Sign | Best For | Main Visual Effect |
|---|---|---|
| Backlit metal logo | Offices, hotels, premium interiors | Soft halo glow behind the logo |
| Front-lit channel logo | Storefronts and façades | Bright, highly visible logo face |
| Acrylic illuminated logo | Reception areas, retail interiors | Clean modern colour and light transmission |
| Edge-lit acrylic logo | Feature walls and close viewing | Slim illuminated outline |
| RGB logo sign | Events, gaming, campaigns | Changeable colours and programmed scenes |
| LED light box logo | Detailed graphics and flat artwork | Bright, even illuminated panel |
A backlit construction is often the strongest option for an office reception wall because it keeps the metal face visually clean during the day and creates a gentle glow after dark. For longer viewing distances, front-lit channel letters normally provide stronger direct visibility.
Compare the appearance of direct illumination with our front-lit channel letters, or view more architectural options in our backlit sign collection.
3. Select Front-Lit, Backlit, or Edge-Lit Illumination
Before ordering illuminated logo signs, decide where the light should appear.
Front-lit logo signs
Front-lit signs use a translucent acrylic face illuminated from inside. They provide a bright, direct logo display and work well for outdoor façades, retail storefronts, shopping centres, and projects viewed from across a road or open space.
Backlit logo signs
Backlit logo signs, also called halo-lit or reverse-lit signs, hide the LEDs behind the letters. The light reflects onto the wall and creates a floating outline around the logo.
This style is especially suitable for:
- Corporate reception walls
- Hotels and premium retail interiors
- Restaurants and cafés
- Dark feature walls
- Architectural entrances
- Brushed-metal or gold-metal logos
Edge-lit acrylic logo signs
An edge-lit acrylic logo uses LEDs along the acrylic edge to create a thin illuminated line. It is suitable for indoor logo displays where the viewing distance is relatively close and a lighter, slimmer structure is preferred.
4. Match the Material to Your Brand Style
The material of illuminated logo signs affects their daytime appearance, durability, weight, and lighting performance.
| Material | Suitable Use | Main Benefit |
|---|---|---|
| Brushed stainless steel | Premium offices, hotels, restaurants | Refined metal appearance and strong durability |
| Mirror stainless steel | Luxury retail and feature walls | Reflective, high-impact finish |
| Painted aluminium | Storefronts and larger letters | Lightweight and versatile colour options |
| Acrylic | Reception logos and retail interiors | Strong colour options and good light transmission |
| Acrylic with metal return | Premium front-lit letters | Bright face with dimensional metal profile |
| ACP rear panel | Wall logos and logo assemblies | Conceals wiring and simplifies mounting |
For a premium office logo, brushed stainless-steel faces with warm-white backlighting are a reliable combination. For a playful retail concept, coloured acrylic faces or RGB elements can create a stronger visual identity.
The wall behind the sign is also part of the design. Dark charcoal, deep blue, wood, stone, and textured wall surfaces can make a halo-lit logo more visible. A white wall produces a softer and more subtle halo.
5. Choose an LED Colour That Supports the Space
Lighting colour changes the mood of illuminated logo signs. A logo may use the company’s brand colour, but that does not mean every installation needs a saturated or fast-changing effect.
| LED Colour | Suitable Environment | Typical Result |
|---|---|---|
| Warm white, 2700K–3200K | Hotels, cafés, premium offices | Softer and more welcoming |
| Neutral white, 4000K–5000K | Retail, showrooms, detailed logos | Cleaner and brighter appearance |
| Cool white, 6000K+ | Modern commercial interiors | Crisp, high-contrast effect |
| Brand-colour LEDs | Retail campaigns and entertainment | Strong brand recognition |
| RGB or RGBW | Events and changing promotions | Multiple colour scenes and effects |
Warm white is often the safest choice for stainless-steel, gold, black, or wood-based logo signage. Neutral white can be useful for bright retail interiors or colourful acrylic faces.
RGB lighting offers more flexibility, but it needs the right controller, wiring plan, and programming. Learn more in our guide: What Is RGB Lighting?.
6. Plan Viewing Distance, Size, and Wall Layout
A logo that looks balanced on a design file may appear too small after installation. Before fabricating illuminated logo signs, review the actual wall dimensions and where visitors first see the sign.
Consider these points:
- Overall logo width and height
- Viewing distance from the entrance, desk, street, or corridor
- Ceiling height and available wall area
- Wall colour, texture, and structural condition
- Daytime ambient lighting and evening lighting
- Whether the sign needs to be visible from one direction or several
- Cable route and power-supply location
- Whether the logo includes fine lines, small text, or detailed icons
For a reception wall, the logo should normally sit where visitors can see it immediately from the entrance. For a retail façade, legibility at distance is more important than intricate detail. Small letters and thin strokes may need a simplified construction to remain clear and evenly illuminated.
A production drawing should show the logo layout, letter depth, mounting positions, cable exits, and electrical connection before fabrication begins.
7. Specify Indoor or Outdoor Construction Correctly
Indoor and outdoor illuminated logo signs do not use the same construction.
Indoor signs can often use lighter materials, concealed power supplies, and simpler mounting. Outdoor projects require more attention to weather exposure, drainage, cable sealing, fixing strength, and service access.
For outdoor logo signage, confirm:
- Destination-country voltage
- Full outdoor, covered outdoor, or indoor use
- Required LED, driver, and connector protection
- Wall type and wind exposure
- Cable sealing and drainage route
- Power-supply location and maintenance access
- Wall-mounted, raceway-mounted, or freestanding installation
- Local permit and electrical requirements
The IEC guide to IP ratings explains how ingress-protection ratings classify resistance to dust and water. However, an IP rating alone does not guarantee a durable sign. Good drainage, sealed cable entries, suitable mounting, and accessible components are equally important.
For United States projects, confirm completed-sign and installation requirements with the local authority having jurisdiction. UL Solutions’ electric-sign guidance explains its evaluation services for signs and sign components. Listed components do not automatically certify the completed sign or site installation.
Common Mistakes to Avoid With Illuminated Logo Signs
The best illuminated logo signs are planned as a complete visual and electrical system. Avoid these common problems:
- Choosing the brightest LEDs instead of planning even illumination
- Selecting warm or cool white without considering wall colour
- Using a halo-lit design on a highly reflective wall without testing the effect
- Making small text too thin for the chosen letter depth
- Forgetting to identify a power-supply location
- Approving artwork without confirming cable exits and mounting points
- Using outdoor-rated LEDs but leaving the driver or connectors exposed
- Choosing RGB effects without defining the controller and daily operating mode
HLW can provide design support and production drawings to help confirm these details before production. For applicable illuminated projects, we also complete lighting tests and provide pre-shipment photos or videos before export packing.
What to Send for an Illuminated Logo Sign Quotation
To quote illuminated logo signs accurately, please provide:
- Vector artwork in AI, PDF, EPS, SVG, or CDR format
- Required overall dimensions or available wall size
- Quantity and installation photos
- Indoor, covered outdoor, or full outdoor application
- Destination country and local voltage
- Preferred material and finish
- Front-lit, backlit, edge-lit, or RGB lighting preference
- Wall mounting, rear panel, raceway, or freestanding requirement
- Required delivery date
If you only have a logo image or reference photo, our team can help develop the construction direction before preparing a final production drawing.
Create a Stronger Brand Feature With HLW Sign
A well-made illuminated logo does more than display a name. It gives customers a clear focal point when they enter an office, pass a storefront, or visit a branded event space.
HLW Sign manufactures custom illuminated logo signs, backlit metal logos, front-lit channel letters, acrylic logo signs, RGB logo displays, and LED light boxes from one set upward. We provide free design support, production drawings, lighting tests for suitable projects, pre-shipment photos or videos, and export-safe wooden-crate packing for larger signs.
Explore HLW Sign’s custom illuminated signage solutions or contact our team with your logo artwork, size, installation photos, destination country, voltage, and preferred lighting effect.
FAQs
What are illuminated logo signs?
Illuminated logo signs are custom logo displays with integrated LEDs. The light can illuminate the front face, acrylic edge, or wall behind fabricated letters and logo shapes.
Are backlit logo signs suitable for an office reception?
Yes. Backlit metal logo signs are popular for office reception areas because they create a soft halo effect and maintain a clean, premium appearance in daytime.
Which material is best for an illuminated wall logo?
Brushed stainless steel, painted aluminium, and acrylic are all common choices. The best material depends on the location, lighting effect, brand style, and expected service life.
Can illuminated logo signs be installed outdoors?
Yes, provided the housing, LEDs, power supply, cable exits, drainage, connectors, and mounting system are specified for the actual weather exposure.
What do you need for a quotation?
Please send vector artwork, overall dimensions, quantity, installation photos, destination country, voltage, indoor or outdoor use, preferred materials, and required lighting effect.
