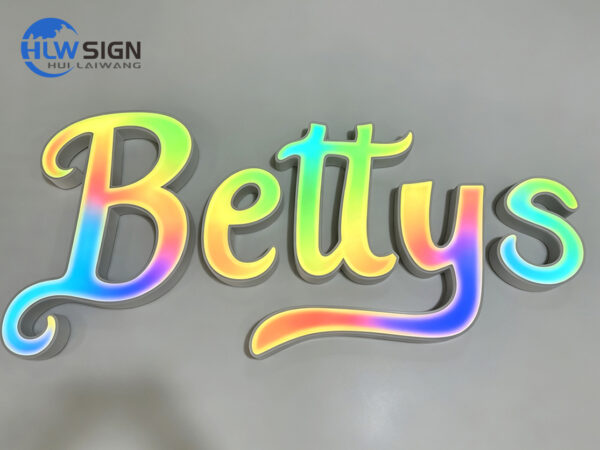

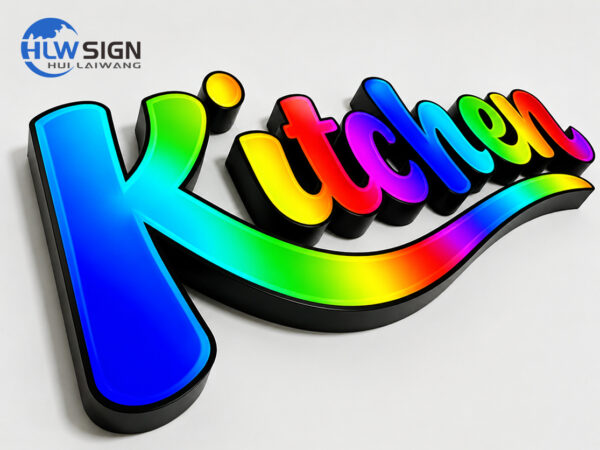

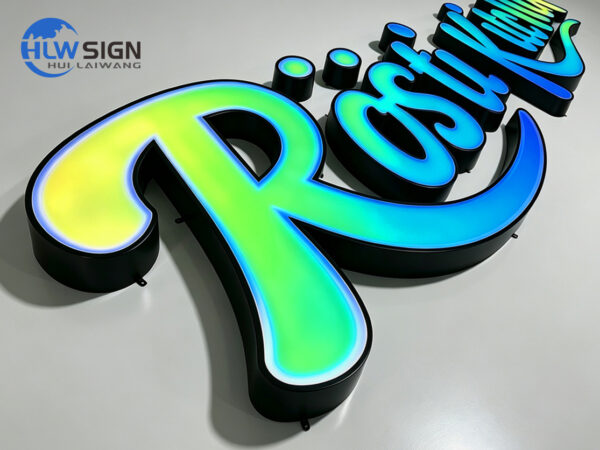

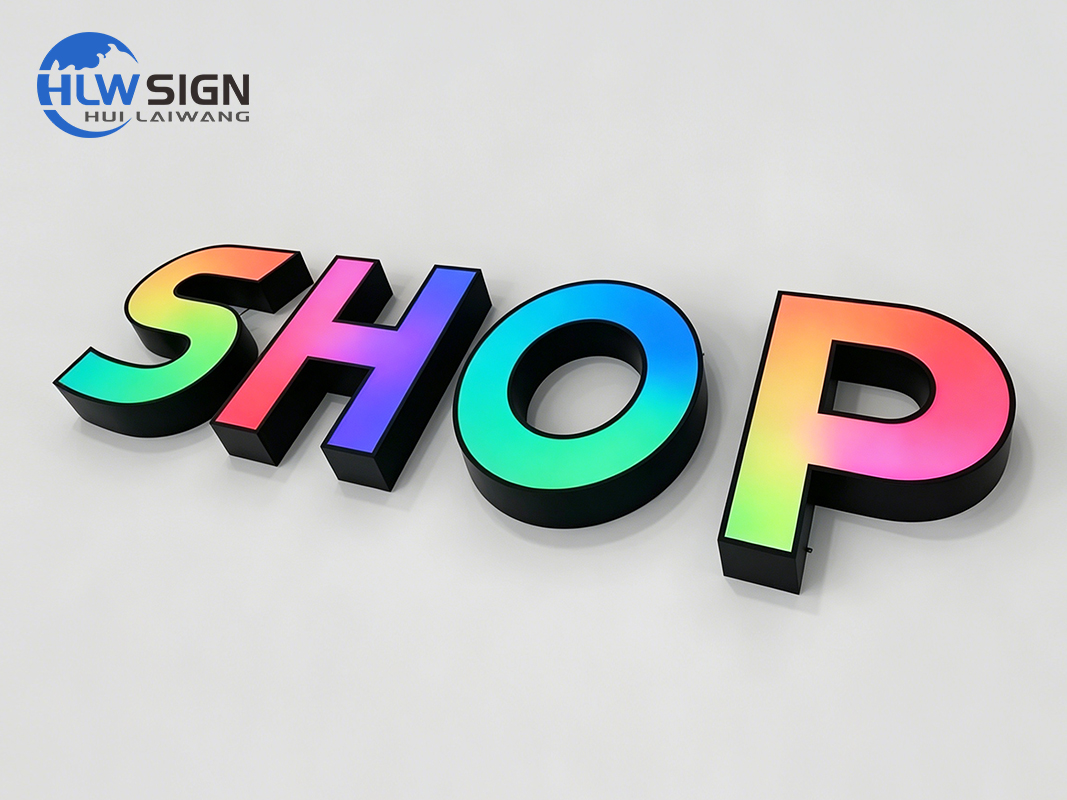

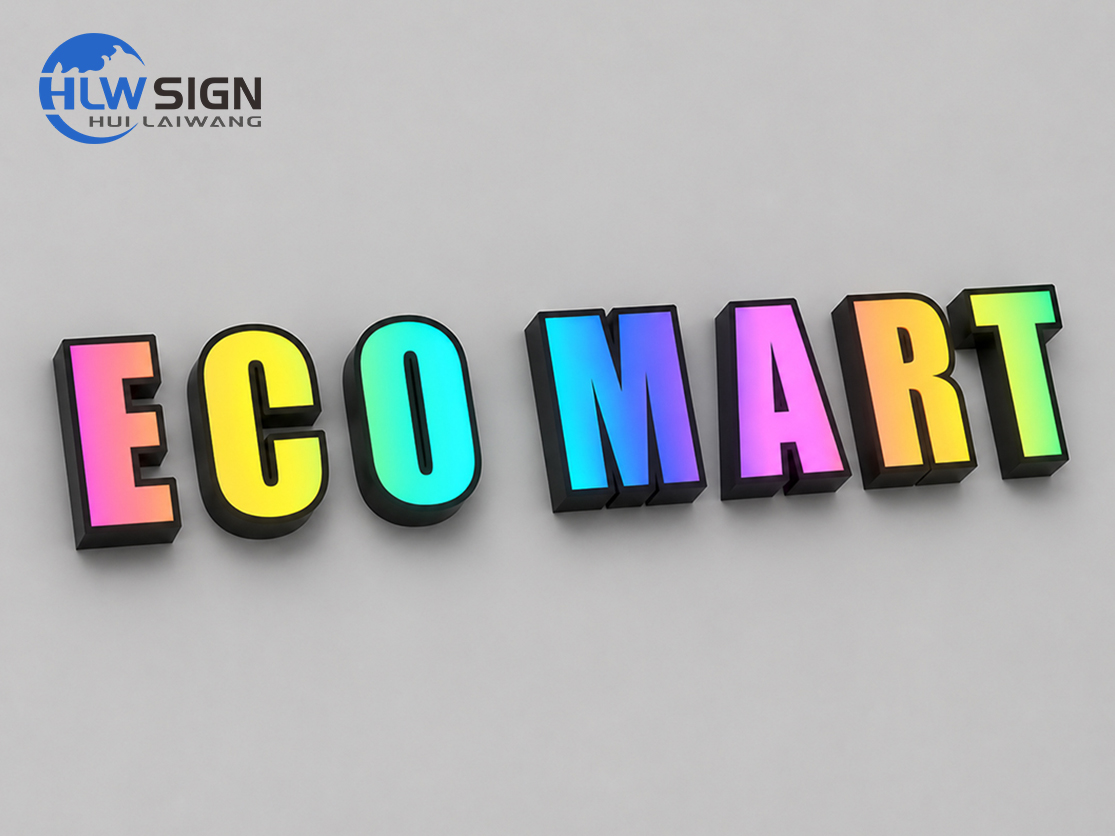

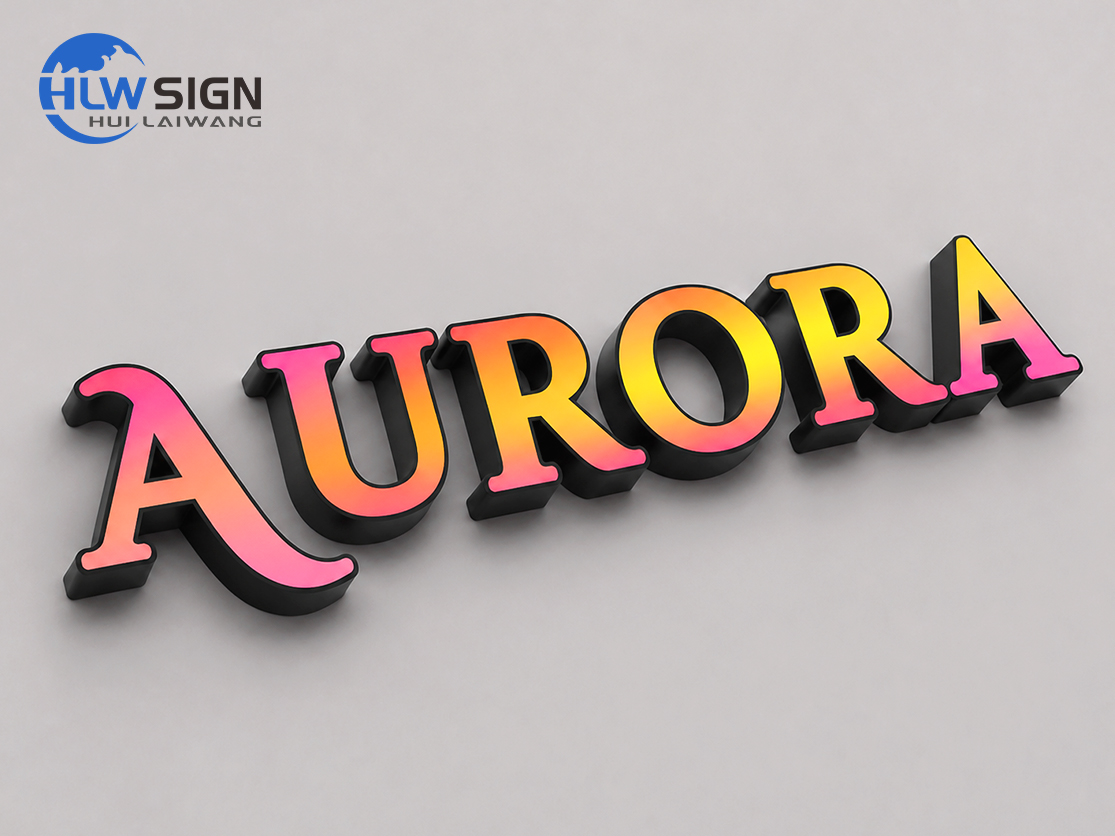

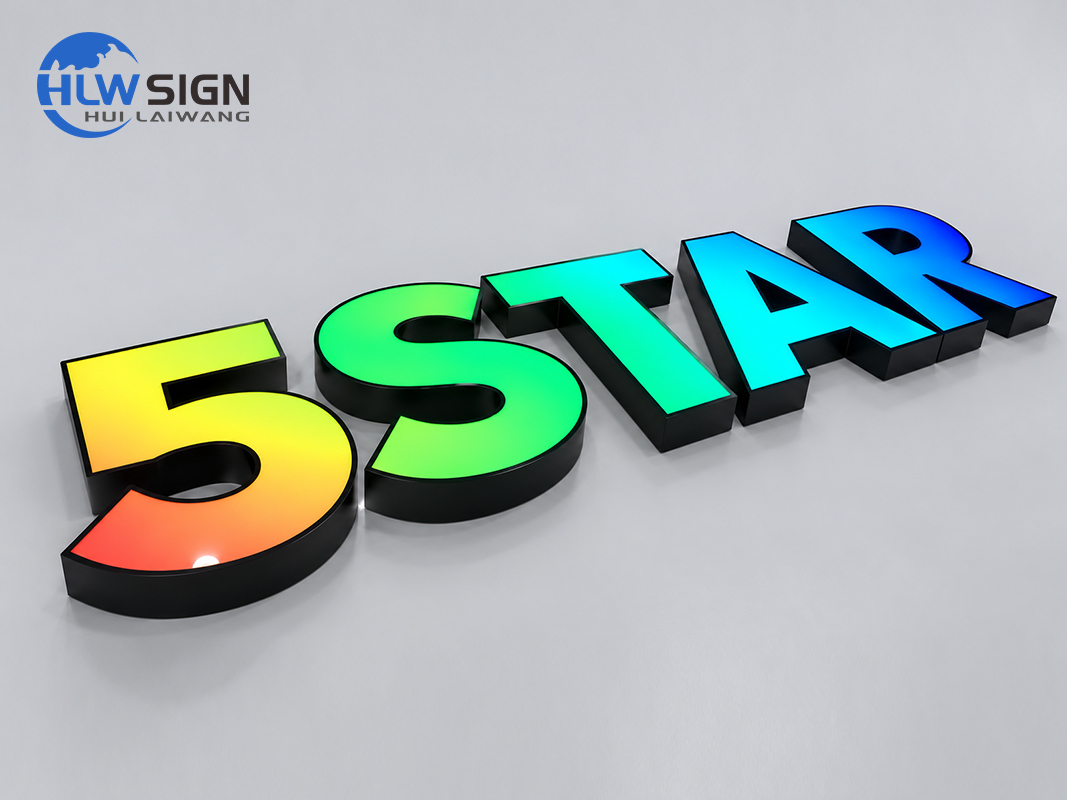

RGB Color-Changing LED Sign Letters – Technical Specification

Our custom RGB Signs combine durable metal construction, high-transmittance acrylic faces, and programmable full-color LED technology. Designed for commercial branding and decorative installations, each RGB Sign can display vivid colors, smooth transitions, and dynamic lighting effects that help businesses attract attention day and night.

The letters can be manufactured with 304 stainless steel or galvanized metal returns and illuminated using energy-efficient 12V or 24V RGB/RGBW LED modules. Depending on the selected structure and waterproof configuration, our RGB Letters are suitable for retail stores, shopping malls, bars, nightclubs, events, brand walls, and indoor or outdoor commercial spaces.

Typical power consumption is approximately 8–15 W per letter, depending on the letter size, LED density, brightness, and programmed effects. A compatible RGB controller, power supply, installation template, and mounting accessories can be supplied with the finished sign.

---

1. Material and Components

Acrylic Face

Available acrylic face thicknesses include:

• 12 mm
• 15 mm
• 20 mm

High-transmittance acrylic provides clear, uniform illumination. Available surface and finishing options include:

• Matte acrylic
• Light-diffusing acrylic
• Transparent acrylic
• UV-printed graphics
• Custom-colored finishes

Metal Returns and Base

The returns and base are manufactured from 1.0–1.5 mm metal sheets, with the following material options:

• 304 stainless steel
• Galvanized iron
• Aluminum, subject to project requirements

Available surface treatments include spray painting, powder coating, brushed finishing, mirror finishing, and electroplating.

LED Light Source

Lighting options include:

• RGB full-color SMD LED modules
• RGBW LED modules with a dedicated white-light channel
• IP65 water-resistant LED modules
• IP67 waterproof LED modules

The required LED type and density are selected according to the letter size, stroke width, brightness requirements, and installation environment.

Control System:
DMX512/TTL/SPI protocol with offline (SD/USB) or online (PC/APP) control

Power Supply:
DC12V/24V low-voltage system with overcurrent and short-circuit protection

The combination of durable materials and intelligent lighting controls makes these products suitable for custom RGB letters displays and high-impact commercial branding.

---

2. Size & Process Specifications

Minimum Stroke Width:

• 8mm standard
• 5mm high-density LED option

Minimum Character Size:

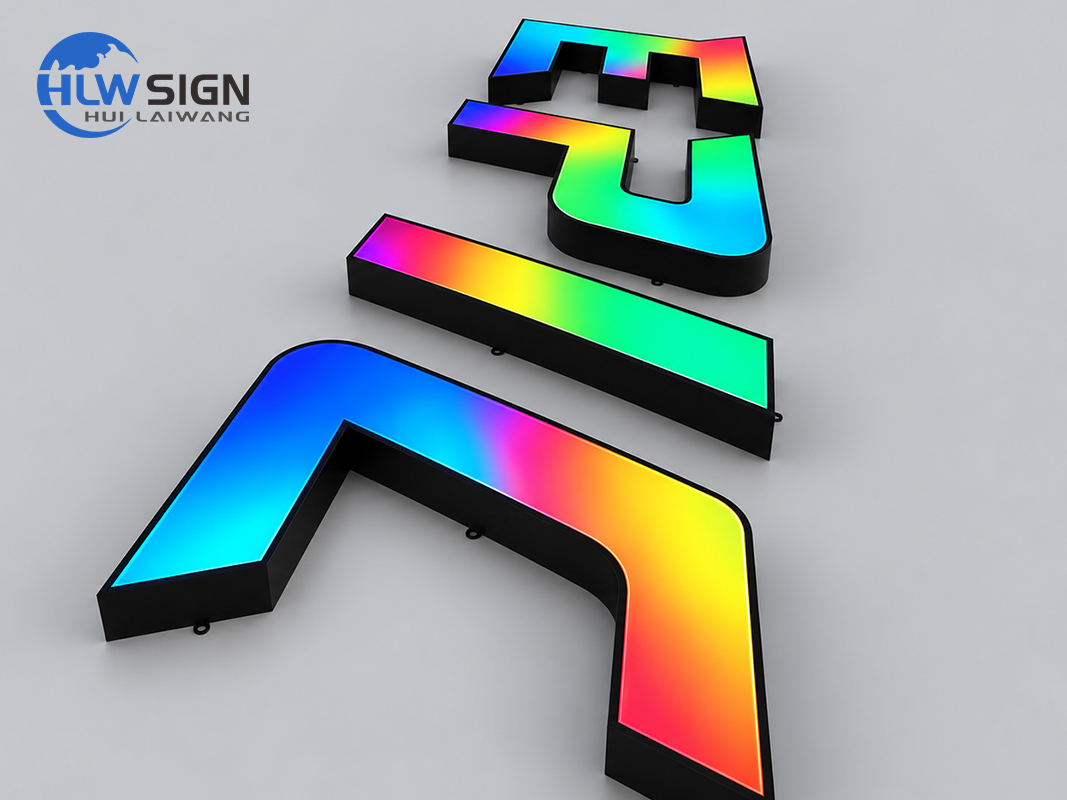

• Chinese characters: ≥8cm
• English bold characters: ≥5cm

Maximum Single Character Size:
≤1.2m × 1.2m
(Larger sizes require segmented assembly)

Overall Thickness:
22–30mm
(Custom thicker options available)

LED Pitch:

• 15–20mm standard
• ≤10mm high-density option for improved brightness uniformity

Each character is carefully engineered to ensure consistent lighting performance, especially for customized letters with LED lights that require clear edges and smooth illumination.

---

3. Performance & Lighting Features

Color Range:
16.7 million colors with RGB/RGBW gamut and saturation ≥85%

Dynamic Effects:
Supports gradient, strobe, chasing, breathing effects, custom patterns, and video playback.

Refresh Rate:
≥30 fps with flicker-free operation

Gray Scale:
256 levels for smooth color transitions

Synchronization:
Multi-sign synchronization rate ≥99% with no visible delay

These advanced lighting functions allow brands to create unique visual effects, making the signage more attractive for advertising, decoration, and interactive experiences.

---

4. Environmental & Reliability

Working Voltage:
DC12V/24V with AC110–240V input

Working Temperature:
-20℃ ~ +60℃

IP Rating:

• IP54 for indoor applications
• IP65 for outdoor weatherproof applications

Lifespan:
≥50,000 hours LED lifespan with light decay ≤30%

Certifications:
CE, RoHS, UL compliant

---

5. Pros & Limitations

✅ Advantages

High Visual Impact
Dynamic full-color effects create a strong visual attraction and help brands stand out in competitive environments.

Custom Animation Support
Supports customized animations, logos, and video content, making it ideal for creative RGB letters displays.

Indoor & Outdoor Application
Suitable for various environments with optional waterproof protection.

Easy Maintenance
Modular design allows convenient installation, replacement, and maintenance.

---

❌ Limitations

• Higher cost compared with standard single-color signs.
• Small or thin strokes may cause uneven lighting effects.

---

6. Applications

RGB color-changing LED sign letters are widely used in:

• Trendy retail stores
• Social media photo walls
• Bars and nightclubs
• Shopping mall displays
• Pop-up events
• Brand image walls

Whether used as a customized LED logo or creative letters with LED lights, these signs help businesses create memorable brand experiences and attract customer attention through dynamic lighting effects.
