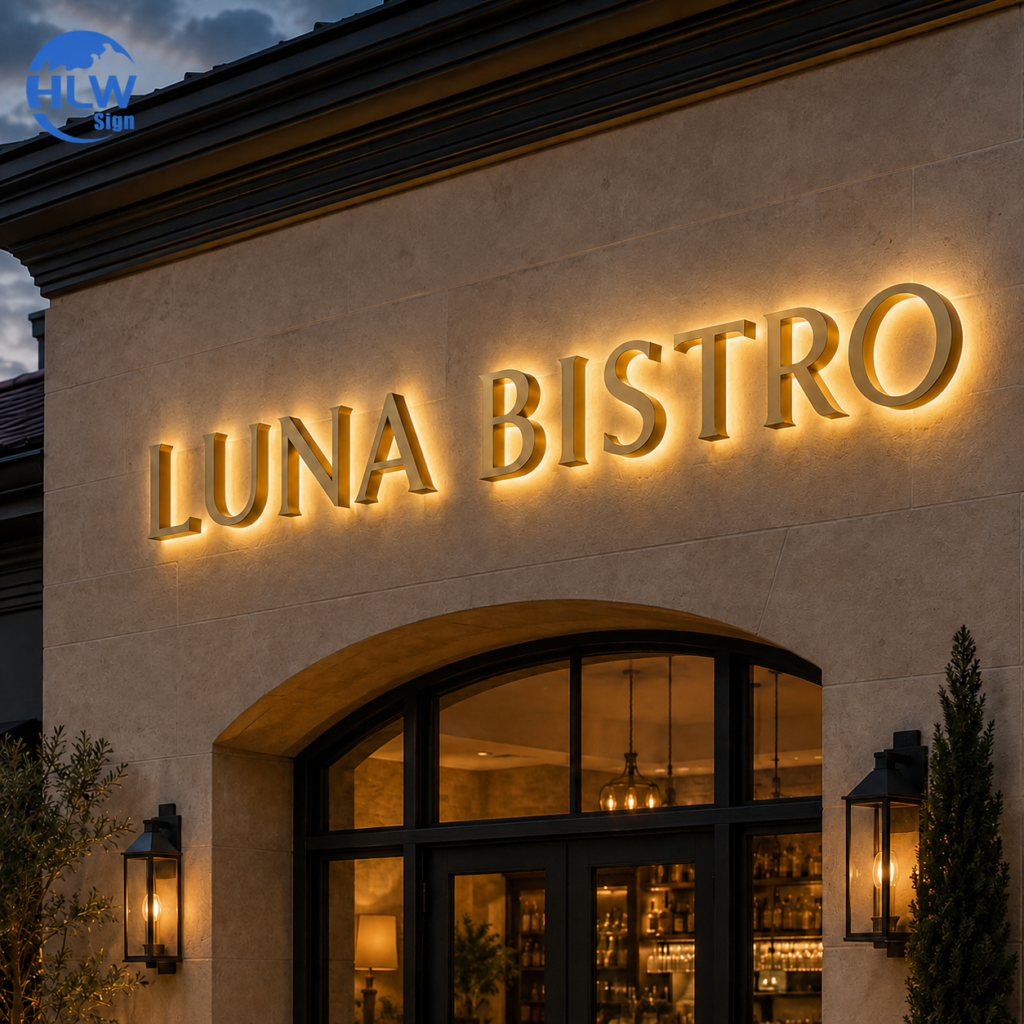

A business sign can be bright and highly visible without looking harsh. Backlit Channel Letters use concealed LED lighting to create a soft halo around each letter, logo, or symbol. The light reflects onto the wall behind the sign, giving the brand a refined three-dimensional appearance.
This lighting style is widely used for reception walls, hotels, restaurants, cafés, salons, clinics, retail stores, office buildings, and outdoor façades. During the day, the metal letters create depth and texture. At night, the halo illumination makes the sign more memorable.
How Backlit Channel Letters Work
Backlit Channel Letters are fabricated letters with an internal LED system positioned behind the visible metal face. The letters are installed with a small distance from the wall, normally using studs and spacers. This gap allows the LED light to spread evenly around the outline of each letter.
A typical construction includes:
- Stainless steel, aluminum, or painted-metal face
- Fabricated metal side returns
- PVC, acrylic, or metal back panel
- Waterproof LED modules or LED strips
- Low-voltage LED driver and concealed wiring
- Stud mounting, spacer mounting, raceway, or backboard installation
Unlike front-lit signs, Backlit Channel Letters do not send light directly toward the viewer. Their visual effect is softer, more architectural, and especially suitable for brands that want an upscale look.
Explore HLW Sign’s Backlit Sign collection for different finishes and styles.
Choose the Right Metal Finish
The visible metal surface strongly affects the daytime appearance of a backlit sign. Stainless steel is a popular choice because it is durable, easy to customize, and suitable for both indoor and outdoor applications.
Common finishes include:
- Brushed silver for modern corporate environments
- Mirror silver for a bright, reflective appearance
- Brushed or mirror gold for hotels and luxury stores
- Rose gold for beauty, fashion, and hospitality projects
- Black titanium or painted black for strong contrast
- Custom painted finishes matched to brand colors
For normal outdoor locations, 304 stainless steel is commonly used. For coastal, island, or high-humidity projects, 316 stainless steel can provide enhanced corrosion resistance.
See our custom stainless steel metal signs for more material and finish options.
Match the LED Color to the Brand Environment
Warm white light, typically around 3000K–3500K, creates an inviting and premium halo. It works well with brushed gold, champagne gold, wood walls, stone finishes, and hospitality interiors.
Cool white light, usually around 6000K–6500K, provides a cleaner and more modern look. It is suitable for offices, clinics, technology brands, and white or grey architectural spaces.
Backlit Channel Letters can also use single-color LEDs, RGB, or RGBW lighting. RGBW is useful when a project requires both decorative color changes and an adjustable white-light mode.
The U.S. Department of Energy’s commercial lighting guide provides further information about the efficiency and control flexibility of LED lighting.
Plan the Halo Effect Before Production
A successful halo effect depends on more than choosing LEDs. The letter depth, spacer distance, wall color, LED brightness, and installation surface all influence the final appearance.
A light-colored wall reflects more light and produces a wider halo. A dark wall creates stronger contrast but may need additional LED output. A typical letter-to-wall distance is approximately 15–40 mm, but the correct distance should be customized according to the design.
For the most uniform result:
- Use adequate letter depth for LED space
- Keep a suitable distance between the letter and the wall
- Select LEDs based on letter size and stroke width
- Consider the wall color and surface texture
- Test the lighting layout before final production
For fine lettering or small logos, adequate stroke width is important. Very narrow parts may not provide enough internal space for LEDs and wiring.
Indoor and Outdoor Installation Options
Backlit Channel Letters can be mounted individually for the cleanest appearance. The studs and wiring are concealed behind the wall, allowing each letter to appear to float slightly above the surface.
When behind-wall wiring is difficult, alternative installation methods are available:
| Installation Method | Best Use |
|---|---|
| Individual stud mounting | Premium walls with concealed wiring |
| Raceway mounting | Faster installation and simpler cable management |
| Backboard mounting | Uneven walls or grouped logo-and-text layouts |
| Custom support frame | Rooftop, façade, or freestanding signage |
For outdoor installations, water protection must include the complete system: letter sealing, cable connections, power supply, drainage, and mounting structure. The IEC IP rating guide explains the protection classifications commonly used for electrical enclosures.
Backlit Letters vs. Front-Lit Letters
Backlit Channel Letters and front-lit letters serve different visual purposes.
| Feature | Backlit Channel Letters | Front-Lit Channel Letters |
| Main lighting direction | Behind the letters | Through the acrylic face |
| Visual effect | Soft halo on the wall | Bright direct illumination |
| Best locations | Reception walls, hotels, offices | Storefronts and high-visibility façades |
| Daytime appearance | Premium metal lettering | Acrylic-face branding |
| Nighttime appearance | Elegant and atmospheric | Bold and highly readable |
For projects requiring both effects, front-and-back-lit letters combine an illuminated acrylic face with a halo behind the metal returns. View Front-Lit LED Letters to compare the two options.
Information Needed for a Custom Backlit Sign
Before requesting a quotation, prepare:
- Vector logo file — AI, PDF, SVG, CDR, or EPS preferred.
- Installation photo — Shows the wall or façade condition.
- Overall dimensions — Available width and preferred letter height.
- Metal finish — Brushed, mirror, painted, gold, rose gold, black, or custom color.
- Lighting choice — Warm white, cool white, RGB, or RGBW.
- Installation location — Indoor, outdoor, coastal, rooftop, or wall-mounted.
- Local voltage and wiring route — Helps determine the correct power solution.
For projects supplied to Europe, electrical components and documentation should be assessed against applicable requirements. The EU Low Voltage Directive outlines safety requirements for electrical equipment within its scope.
Custom Backlit Channel Letters from HLW Sign
HLW Sign manufactures custom Backlit Channel Letters for businesses worldwide. We offer free design support, custom stainless steel finishes, waterproof LED options, lighting tests before shipment, and secure export packaging.
Whether you need a small reception logo, an illuminated restaurant sign, or large outdoor building letters, our team can recommend a practical structure based on your logo, wall surface, installation location, and desired lighting effect.
Read our LED Channel Letters guide or contact HLW Sign for a free quotation.
Frequently Asked Questions
Are Backlit Channel Letters suitable for outdoor use?
Yes. With suitable stainless steel or aluminum construction, waterproof LED components, sealed wiring, and correct installation, Backlit Channel Letters are suitable for outdoor façades and storefronts.
What LED color is best for a backlit sign?
Warm white creates a softer, premium appearance, while cool white provides a more modern and crisp effect. The choice should match the metal finish and surrounding architecture.
Can Backlit Channel Letters use RGB lighting?
Yes. RGB and RGBW systems can create selectable colors and dynamic effects through a remote or controller.
Can the letters be installed without visible wiring?
Yes. Individual stud mounting hides the wiring behind the wall. If this is not possible, a raceway or backboard can organize the letters and cable connections.
