When designing illuminated signage, the quality of the lighting system is just as important as the appearance of the sign itself. A professional channel letter LED layout ensures that LED modules are positioned correctly to achieve uniform brightness, reliable performance, and long-term durability.
For businesses, retailers, restaurants, and commercial buildings, well-designed LED channel letters can significantly improve brand visibility, especially during nighttime operation. However, the final lighting effect depends not only on LED quality but also on the internal LED placement, spacing, power design, and fabrication process.
As a professional custom signage manufacturer, HLW Sign provides complete LED layout solutions for different types of illuminated signs, including front-lit, backlit, and RGB channel letters.
What Is a Channel Letter LED Layout?
A channel letter LED layout is a technical drawing that shows how LED modules are arranged inside individual letters or logos.
It usually includes:
- LED module positions
- LED spacing distance
- Wiring direction
- Power connection points
- LED quantity
- Total power consumption
- Recommended power supply
The purpose of an LED layout is to ensure that every part of the letter receives balanced illumination.
For example, a large letter “A” requires carefully calculated LED placement to avoid:
- Dark areas
- Uneven brightness
- Visible LED hotspots
- Excessive power consumption
A professional layout allows manufacturers and installers to achieve consistent lighting results across the entire signage system.
Why Is LED Layout Important for Channel Letters?
A common misunderstanding is that brighter LEDs automatically create better signs. In reality, the internal design of the lighting system plays a critical role.
A well-designed channel letter LED layout provides several advantages:
1. Uniform Illumination
The biggest goal of LED placement is creating smooth and even lighting.
Poor LED positioning may cause:
- Bright spots near LED modules
- Shadows around letter edges
- Uneven light distribution
Professional manufacturers calculate LED spacing according to:
- Letter height
- Letter depth
- Face material
- Acrylic diffusion properties
- Required brightness level
This is especially important for large outdoor signs and premium commercial projects.
2. Better Energy Efficiency
A properly designed LED layout reduces unnecessary LED usage.
By optimizing:
- LED quantity
- Module spacing
- Power distribution
manufacturers can achieve the required brightness while reducing electricity consumption.
Modern LED channel letters typically use low-voltage LED modules because they provide high efficiency, long lifespan, and low maintenance requirements. According to industry resources from the International Sign Association (ISA), LED technology has become an important solution for modern illuminated signage applications.
3. Improved Sign Reliability
Outdoor signage must operate continuously under different weather conditions.
A professional LED layout helps prevent:
- Overloaded circuits
- Uneven heat distribution
- Voltage drop problems
For outdoor applications, LED systems should also consider:
- Waterproof protection
- Proper cable routing
- Suitable power supplies
- Correct IP-rated components
At HLW Sign, every illuminated sign is tested before shipment to ensure stable lighting performance.
What Information Is Included in a Professional LED Layout?
A complete channel letter LED layout normally contains the following information:
1. LED Module Placement
The drawing shows exactly where LED modules are installed inside each letter.
Example:
Letter:
WELCOME
LED Type:
SMD2835
Color:
6500K White
Module Quantity:
120 pcs
Spacing:
70–80 mm
2. Electrical Wiring Diagram
The layout also explains how the LED modules connect to the power supply.
It may include:
- Positive and negative wiring
- Letter grouping
- Cable exit locations
- Transformer connection
This information helps local installers complete installation correctly.
3. Power Calculation
Before production, manufacturers calculate the total electrical requirements.
Example:
Project:
Outdoor Front-Lit Channel Letters
LED:
12V LED Module
Total Modules:
180 pcs
Power:
45W
Recommended Driver:
Mean Well 100W
Correct power calculation helps extend LED lifespan and improves safety.
How Manufacturers Design LED Layouts for Different Channel Letters
Different sign structures require different LED arrangements.

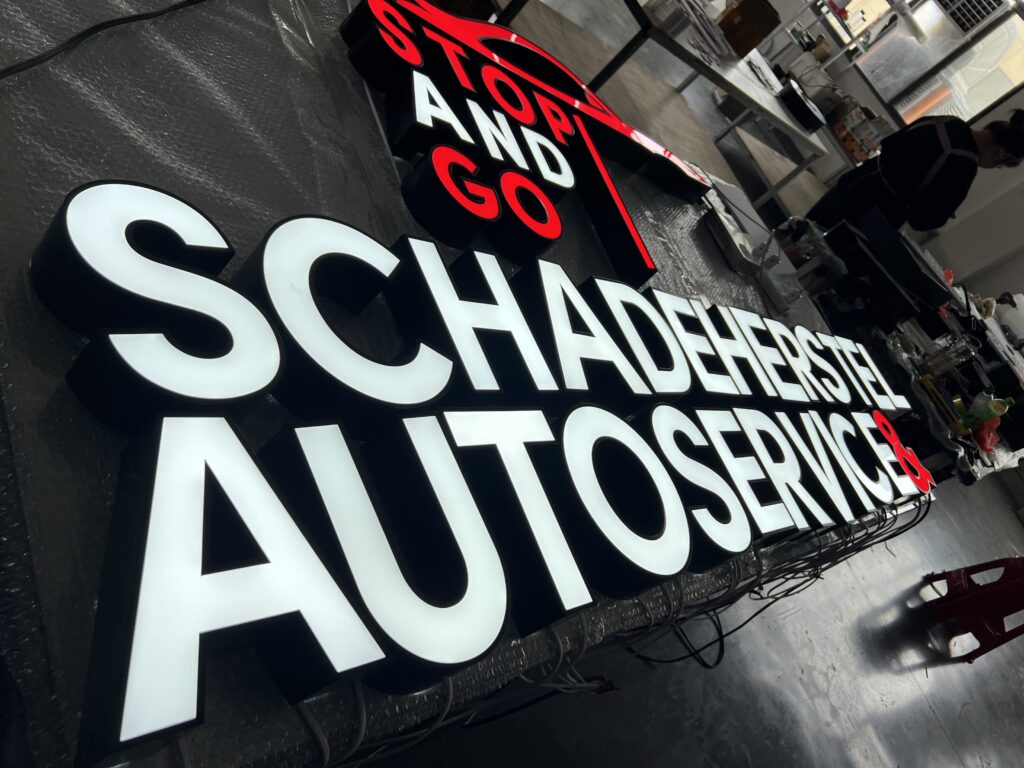

Front-Lit Channel Letters
For front-lit signs, LEDs are installed inside the letter cavity and illuminate through acrylic faces.
The LED layout focuses on:
- Face brightness
- Light diffusion
- Module spacing
Learn more about our Front Lit Channel Letters solutions.
Backlit Channel Letters
Backlit or halo-lit letters require a different LED layout because the light is reflected onto the wall behind the letters.
Important factors include:
- Distance from wall
- Back panel material
- LED angle
- Light diffusion
A good layout creates a smooth halo effect without visible bright points.
Explore our Backlit Channel Letters for premium architectural signage applications.

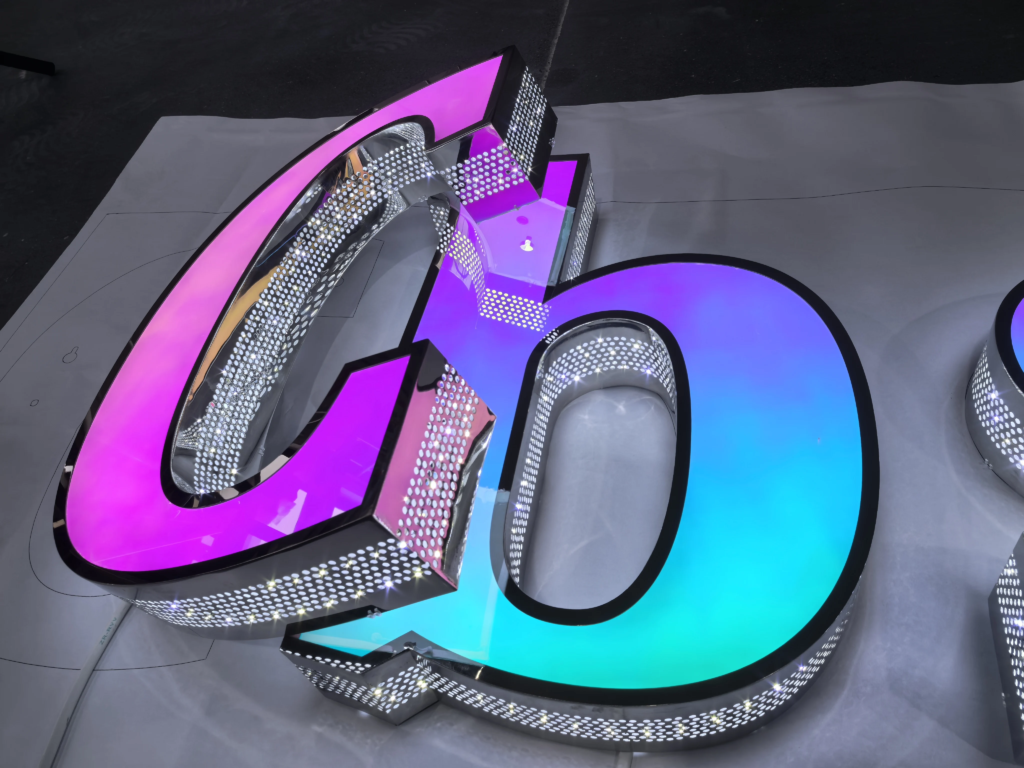

RGB and RGBW Channel Letters
For projects requiring color-changing effects, LED layout becomes more complex.
RGB/RGBW systems require consideration of:
- Controller compatibility
- Cable grouping
- Color consistency
- Power capacity
These systems are commonly used for:
- Entertainment venues
- Bars
- Retail stores
- Brand activation projects
Common Mistakes in Channel Letter LED Layout Design
Using Too Few LED Modules
Reducing LED quantity may lower production costs, but it can create:
- Uneven lighting
- Dark corners
- Poor nighttime appearance
Incorrect LED Spacing
Spacing depends on:
- Letter depth
- Module brightness
- Face material
Incorrect spacing may create visible shadows or hotspots.
Ignoring Installation Requirements
A good LED layout should consider the final installation environment.
For example:
- Outdoor facade
- Indoor wall
- Stone surface
- Glass background
- Metal panels
Each application requires different lighting calculations.
Why Choose a Professional Manufacturer for LED Channel Letters?
Working with an experienced signage manufacturer ensures that your project receives:
- Accurate LED layout design
- Professional material selection
- Correct electrical planning
- Quality-controlled production
- Installation support
HLW Sign provides complete custom signage solutions from design drawings to manufacturing and global delivery.
Our team supports customers with:
- Installation drawings
- Wiring instructions
- LED layouts
- Mounting templates
- Technical support
Learn more about our Custom Channel Letters manufacturing services.
Conclusion
A professional channel letter LED layout is an essential part of producing high-quality illuminated signage. It determines how LEDs are positioned, how evenly the sign illuminates, and how efficiently the system operates.
Whether you need front-lit letters, halo-lit signage, or advanced RGB solutions, proper LED planning ensures better appearance, longer lifespan, and easier installation.
By working with an experienced manufacturer, businesses can achieve reliable and attractive signage solutions for retail stores, offices, restaurants, and commercial buildings.
